Fomblin Perfluorinated Greases

$119.00 per 100 gram tube

  • Fomblin Grease RT-15
  • Fomblin Grease Y-vac 2
  • Fomblin Grease Y-vac 3

Fomblin Y-Vac 2 grease 100 gram tube $119.00

Type

Y-Vac2

NLGI Class

2

Vapor Pressure (Torr)

@ 20 °C: 5 x 10-13
@ 100 °C: 5 x 10
-8

Kinematic Viscosity (cSt)

1450

Temperature Range

-20 to +250 (°C)

Viscosity Index
(ASTM D2270)

135

Penetration

(worked 60 strokes)
@ 25 °C (mm/10): 285

Oil Separation (FTMS 791-321)

@ 204 °C, 30 h (%): 8.5

Weight Loss (ASTM D 2595)

@ 204°C, 22 h(%): 0.3

Density
(ASTM D 891)

@ 20 °C (g/cm3): 2

Speedy Factor (dm.n)

250,000






Fomblin Y-Vac 3 grease 100 gram tube $119.00

Type

Klüber Fomblin® Y-Vac3

Color

White

Kinematic Viscosity (cSt)

@ 20°C: Approx. 1.9 g/cm3

Temperature Range

-20°C (-4°F) to 250°C (482°F)

Penetration

(DIN ISO 2137, 25°C)
220 x 0.1 mm (Lower limit value)
250 x 0.1 mm (Upper limit value)

Oil Separation (FTMS 791-321)

@ 200°C, 30 h: <= 10% by weight

Shelf Life

60 Months

Weight Loss (ASTM D 2595)

@ 204°C, 22h: <=1% by weight

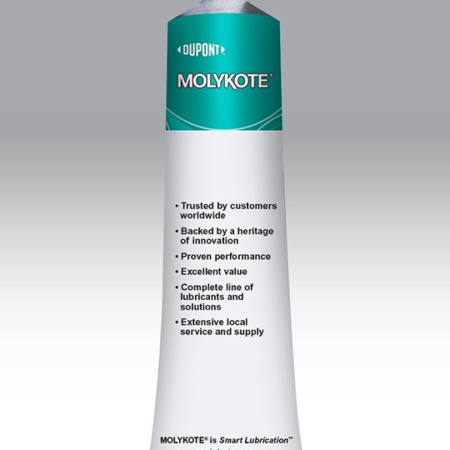

Dow Corning High Vacuum Grease

$22.00 per 5.3 oz tube

“Free Silicone fluid sample of CQ-704 or CQ-705 Silicone fluid, for all Dow Corning users up to 10 gallons”

Vapor Pressure (Torr)

@150°C: 1.2 x 10-5Torr (Degassed)
@200°C: 7 x 10-4Torr (Degassed)

Specific Gravity

@25°C: 1.0 (g/cc)

Color

Light Gray

Melting Point

None

Bleed after 24 Hours

@199°C: 0.5% max.

Evaporation after 24 Hours

@199°C: 2.0% max.

Solidification Point

-40°C



Apiezon Grease

  • Apiezon L 25 gram
  • Apiezon H 25 gram
  • Apiezon M 25 gram
  • Apiezon M 50 gram
  • Apiezon T 25 gram
  • Apiezon AP-100 50
  • Apiezon AP-101 50

Apiezon L 25 gram $ 92.00

Vapor Pressure (Torr)

@20°C: 7 x 10-11

Specific Gravity

0.896 (g/cc)

Melting Point

42-52 (°C)

Temperature Range

10-30 (°C)

Thermal Conductivity

@20°C: 0.194 (w/m °C)

Lubricity 4 Ball Test

150 (kg)

Outgassing Characteristics
(ASTM .E595-93)

TML: <1%
CVCM: <0.1%

Viscosity of Molten Grease

@50°C (cP), 766
@100°C (cP), 62.3

Radiation Resistance

Yes

Coeff. of Expansion

20°C-30°C: 0.00076 cm/°C

Volume Resistivity

1.2 x 1016 (ohm cm)

Permitivity

2.3

Loss Tangent

<0.0001

Surface Breakdown at
Flash Over

24 (kV)

Electric Strength

730 (V/mil)

Apiezon H 25 gram $120.00

Vapor Pressure (Torr) @20°C: 1.7 x 10-9
Specific Gravity 0.918 (g/cc)
Specific Heat (J/g) @25°C: 1.7(J/g)
Melting Point Does not melt
Temperature Range -10 to 240 (°C) Stiff: -15 to 10 (°C) Optimum: 10 to 110 (°C) Stiff but Usable: 110 to 240 (°C)
Thermal Conductivity 0.216 (w/m °C)
Lubricity 4 Ball Test 250 (kg)
Outgassing Characteristics (ASTM .E595-93) TML: <1% CVCM: <0.1%



Apiezon M 25 gram $ 55.00

Apiezon M 50 gram $ 99.00

Vapor Pressure (Torr) @20°C: 1.7 x 10-9
Specific Gravity 0.894 (g/cc)
Melting Point 40-48 (°C)
Temperature Range 10-30 (°C)
Thermal Conductivity @20°C: 0.194 (w/m °C)
Lubricity 4 Ball Test 140 (kg)
Viscosity of Molten Grease @50°C, 413 (cSt) @100°C, 29.8(cSt)
Radiation Resistance Yes
Coeff. of Expansion 20°C-30°C: 0.00075 cm/°C
Volume Resistivity 2.6 x 1016 (ohm cm)
Permitivity 2.1
Loss Tangent <0.0001
Surface Breakdown at Flash Over 28 (kV)
Electric Strength 850 (V/mil)

Apiezon T 25 gram $115.00

Vapor Pressure (Torr) @20°C: 4.6 x 10-9
Specific Gravity 0.912 (g/cc)
Melting Point 112-137 (°C)
Temperature Range Stiff: 10 to 25 (°C) Optimum: 25 to 50 (°C) Soft: 50 to 120 (°C)
Coeff. of Expansion 20-30 °C: 0.00073 (cm/°C)
Volume Resistivity 3.3 x 1012 (ohm cm)
Permitivity 2.3
Loss Tangent <0.0001
Surface Breakdown at Flash Over 24 (kV)
Electric Strength 730 (V/mil)

Apiezon AP-100 50 gram $130.00

Vapor Pressure (Torr) @20°C: 7 x 10-11
Specific Gravity 1.042 (g/cc)
Melting Point 42-52°C
Temperature Range 10-30 (°C)
Lubricity 4 Ball Test 450 (kg)
Outgassing Characteristics (ASTM .E595-93) TML: <1% CVCM: <0.1%

Apiezon AP-101 50 gram $ 59.00

Vapor Pressure (Torr) @20°C: 4.6 x 10-9
Specific Gravity 0.912 (g/cc)
Melting Point 112-137 (°C)
Temperature Range Stiff: 10 to 25 (°C) Optimum: 25 to 50 (°C) Soft: 50 to 120 (°C)
Coeff. of Expansion 20-30 °C: 0.00073 (cm/°C)
Volume Resistivity 3.3 x 1012 (ohm cm)
Permitivity 2.3
Loss Tangent <0.0001
Surface Breakdown at Flash Over 24 (kV)
Electric Strength 730 (V/mil)







Kluber RT-15 1 kilogram $900.00

Kluber RT-15 100 gram tube $119.00

Kluber Fomblin RT-15 100 gram

$119.00 per 100 gram tube



Type

Klüber Fomblin® RT-15

NLGI Class

2

Color

White

Kinematic Viscosity (cSt)

(DIN 51562 pt. 01/ASTM D-445/ASTM D 7042)
@ 40°C (Base oil): approx. 370 mm2/s
@ 100°C: approx. 33 mm2/s

Temperature Range

-20°C (-4°F) to 250°C (482°F)

Penetration

(DIN ISO 2137, 25°C)
265 x 0.1 mm (Lower limit value)
295 x 0.1 mm (Upper limit value)

Oil Separation (FTMS 791-321)

@ 200 °C, 30 h: <= 12% by weight

Shelf Life

60 months

Weight Loss (ASTM D 2595)

@ 204°C, 22 h: <= 3% by weight

Density
(ASTM D 891)

@ 20 °C (g/cm3): 1.9
